Drone platforms for professional training

Equipment for companies that train drone pilots and technicians. CSX3 and CSX4 are full-size hexacopter airframes for flight and assembly training. The GD18 caged drone and inflatable arenas are used in drone soccer training programmes run by training providers.

Business customers only. For lawful civilian commercial and professional applications. All orders are subject to business verification, product eligibility and applicable approvals.

Pilot and assembly training

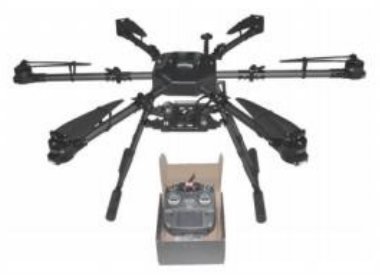

CSX3

Hexacopter airframe for professional pilot and assembly training

Empty weight: 9 kg
Endurance: 15–20 min (no payload)
Control range: 3 km
Battery: 12S 16000 mAh

Full specifications

Configuration	Hexacopter, 6 arms / 6 rotors
Diagonal wheelbase	1300 mm
Empty weight	9 kg
Control range	3 km
Remote controller	Skydroid / Futaba
Battery	12S 16000 mAh
Service ceiling	500 m
Endurance	15–20 min (no payload)
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Size unfolded / folded	1320×1490×600 / 640×550×600 mm

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

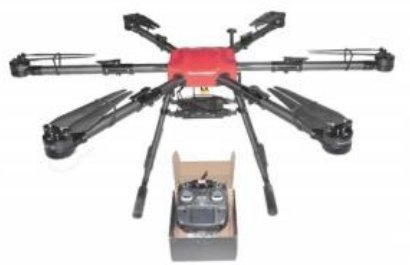

CSX4

Hexacopter airframe for professional pilot and assembly training

Empty weight: 13.8 kg
Endurance: 15–20 min (no payload)
Control range: 3 km
Battery: 12S 22000 mAh

Full specifications

Configuration	Hexacopter, 6 arms / 6 rotors
Diagonal wheelbase	1650 mm
Empty weight	13.8 kg
Control range	3 km
Remote controller	Skydroid / Futaba
Battery	12S 22000 mAh
Service ceiling	500 m
Endurance	15–20 min (no payload)
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Size unfolded / folded	1620×1800×700 / 960×870×700 mm

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

Drone soccer for training providers

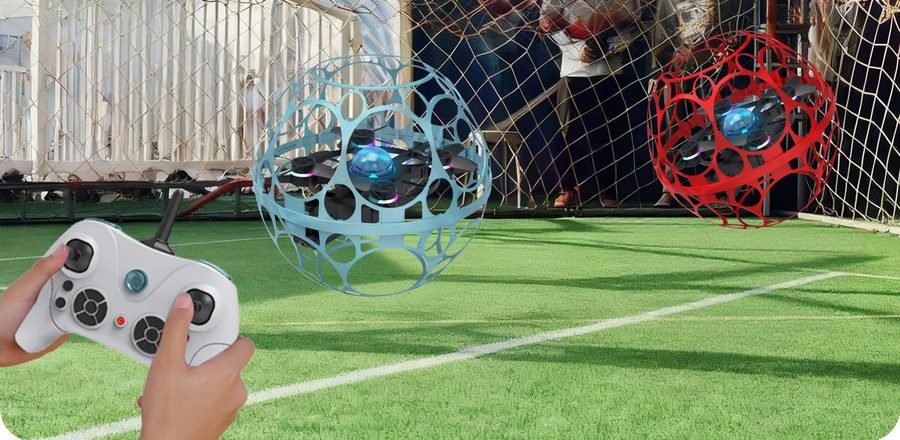

GD18 Drone Soccer

Caged ball drone for drone soccer training programmes

Weight: 196 g
Endurance: 12 min
Control range: 100 m
Packing: 18 pcs / carton

Full specifications

Weight	196 g
Endurance	12 min
Control range	100 m
Battery	7.4 V 2200 mAh
Charging time	300 min
Features	20 cm protective cage ball, 360° roll, headless mode, one-key take-off and landing
Packing	18 pcs / carton

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

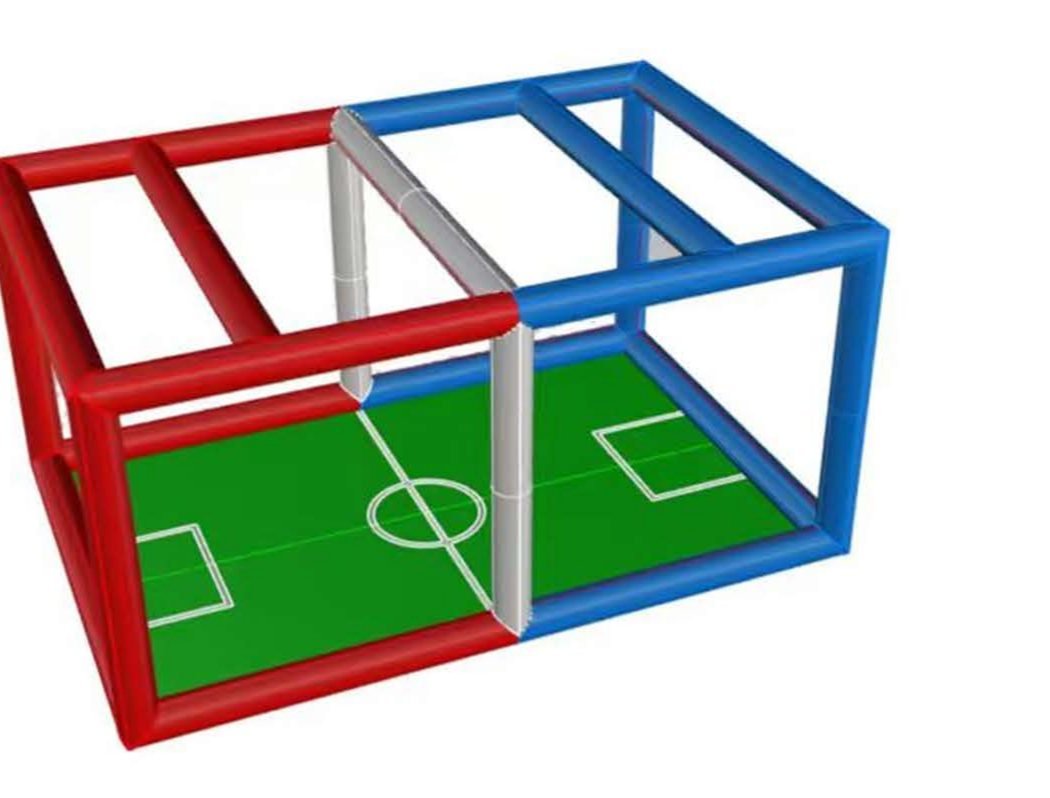

Drone soccer arenas and goals

Inflatable closed arenas set up in about 20 minutes, from 3×3×3 m to 12×6×4 m. Goals in 30 cm, 33×20 cm and 63×43 cm, electronic goals with Bluetooth or button scoring in 50 to 80 cm, and scoreboard systems for match play.

Need a configuration that is not listed?

Payloads, batteries, spare parts and ground stations can be quoted on request, subject to availability. Describe the job and we propose a setup.
