Industrial drones for inspection and payload transport

Quad, hexa and octo platforms for inspection, payload transport and heavy lifting. The CSY series carries 5 to 30 kg with a 1–30× zoom gimbal and four-constellation GNSS. CS53 and CS-20M add long endurance and thermal imaging. CSY100 and CSY200 lift up to 100 and 200 kg according to the manufacturer.

Typical applications: Drones for infrastructure inspection

Business customers only. For lawful civilian commercial and professional applications. All orders are subject to business verification, product eligibility and applicable approvals.

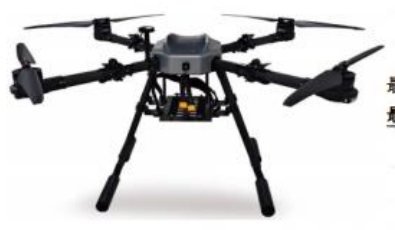

CSY4405

Light inspection quad with 30× zoom gimbal

Payload: 5 kg
Endurance: 70 min
Control range: 3–30 km
Empty weight: 6.5 kg

Full specifications

Configuration	Quadcopter, 4 arms / 4 rotors
Diagonal wheelbase	1050 mm
Empty weight	6.5 kg
Payload	5 kg
Endurance	70 min
Control range	3–30 km
Gimbal zoom	1–30×
Service ceiling	500 m
Max. speed	15 m/s
Climb / descent rate	5 m/s
Max. tilt angle	30°
Flight modes	GPS / attitude
Wind resistance	Sustained Beaufort 4, gusts 5
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Navigation	GPS + Galileo + BeiDou + GLONASS
Airframe	Carbon fibre + aviation aluminium
Size unfolded / folded	850×850×520 / 550×550×520 mm

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

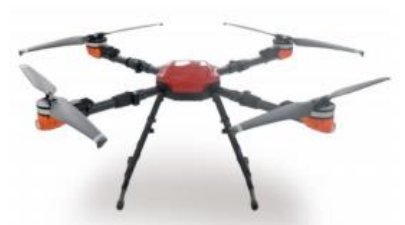

CSY4410

10 kg payload for survey and water-resource work

Payload: 10 kg
Endurance: 50 min
Control range: 3–30 km
Empty weight: 12 kg

Full specifications

Configuration	Quadcopter, 4 arms / 4 rotors
Diagonal wheelbase	1300 mm
Empty weight	12 kg
Payload	10 kg
Endurance	50 min
Control range	3–30 km
Gimbal zoom	1–30×
Service ceiling	500 m
Max. speed	15 m/s
Climb / descent rate	5 m/s
Max. tilt angle	30°
Flight modes	GPS / attitude
Wind resistance	Sustained Beaufort 4, gusts 5
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Navigation	GPS + Galileo + BeiDou + GLONASS
Airframe	Carbon fibre + aviation aluminium
Size unfolded / folded	1100×1100×650 / 650×650×650 mm

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

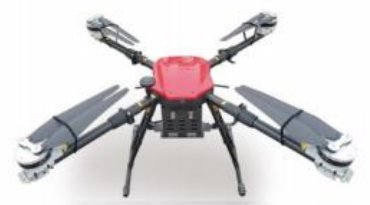

CSY4415

Pipeline and power-line inspection with 15 kg payload

Payload: 15 kg
Endurance: 70 min
Control range: 3–30 km
Empty weight: 14 kg

Full specifications

Configuration	Quadcopter, 4 arms / 4 rotors
Diagonal wheelbase	1400 mm
Empty weight	14 kg
Payload	15 kg
Endurance	70 min
Control range	3–30 km
Gimbal zoom	1–30×
Service ceiling	500 m
Max. speed	15 m/s
Climb / descent rate	5 m/s
Max. tilt angle	30°
Flight modes	GPS / attitude
Wind resistance	Sustained Beaufort 4, gusts 5
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Navigation	GPS + Galileo + BeiDou + GLONASS
Airframe	Carbon fibre + aviation aluminium
Size unfolded / folded	1160×1160×650 / 700×700×650 mm

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

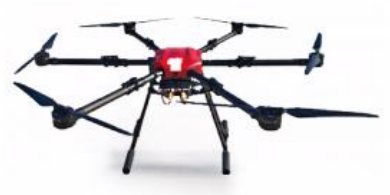

CSY6615

Six-rotor variant with 15 kg payload

Payload: 15 kg
Endurance: 30 min
Control range: 3–30 km
Empty weight: 13.8 kg

Full specifications

Configuration	Hexacopter, 6 arms / 6 rotors
Diagonal wheelbase	1650 mm
Empty weight	13.8 kg
Payload	15 kg
Endurance	30 min
Control range	3–30 km
Gimbal zoom	1–30×
Service ceiling	500 m
Max. speed	15 m/s
Climb / descent rate	5 m/s
Max. tilt angle	30°
Flight modes	GPS / attitude
Wind resistance	Sustained Beaufort 4, gusts 5
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Navigation	GPS + Galileo + BeiDou + GLONASS
Airframe	Carbon fibre + aviation aluminium
Size unfolded / folded	1750×1580×700 / 980×900×700 mm

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

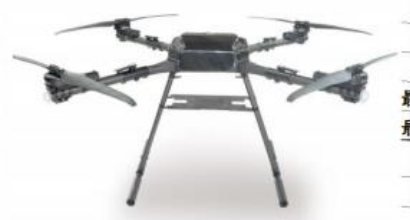

CSY4430

30 kg payload quad for stringing and transport

Payload: 30 kg
Endurance: 50 min
Control range: 3–30 km
Empty weight: 22.5 kg

Full specifications

Configuration	Quadcopter, 4 arms / 4 rotors
Diagonal wheelbase	1800 mm
Empty weight	22.5 kg
Payload	30 kg
Endurance	50 min
Control range	3–30 km
Gimbal zoom	1–30×
Service ceiling	500 m
Max. speed	15 m/s
Climb / descent rate	5 m/s
Max. tilt angle	30°
Flight modes	GPS / attitude
Wind resistance	Sustained Beaufort 4, gusts 5
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Navigation	GPS + Galileo + BeiDou + GLONASS
Airframe	Carbon fibre + aviation aluminium
Size unfolded / folded	1450×1450×900 / 900×900×900 mm

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

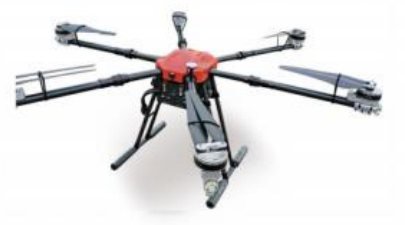

CSY6630

Hexacopter for power-line stringing and building patrol

Payload: 30 kg
Endurance: 22 min
Control range: 3–30 km
Empty weight: 22 kg

Full specifications

Configuration	Hexacopter, 6 arms / 6 rotors
Diagonal wheelbase	1850 mm
Empty weight	22 kg
Payload	30 kg
Endurance	22 min
Control range	3–30 km
Gimbal zoom	1–30×
Service ceiling	500 m
Max. speed	15 m/s
Climb / descent rate	5 m/s
Max. tilt angle	30°
Flight modes	GPS / attitude
Wind resistance	Sustained Beaufort 4, gusts 5
Hover accuracy	±1.5 m horizontal, ±0.5 m vertical
Navigation	GPS + Galileo + BeiDou + GLONASS
Airframe	Carbon fibre + aviation aluminium
Size unfolded / folded	1980×1780×750 / 980×900×750 mm

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

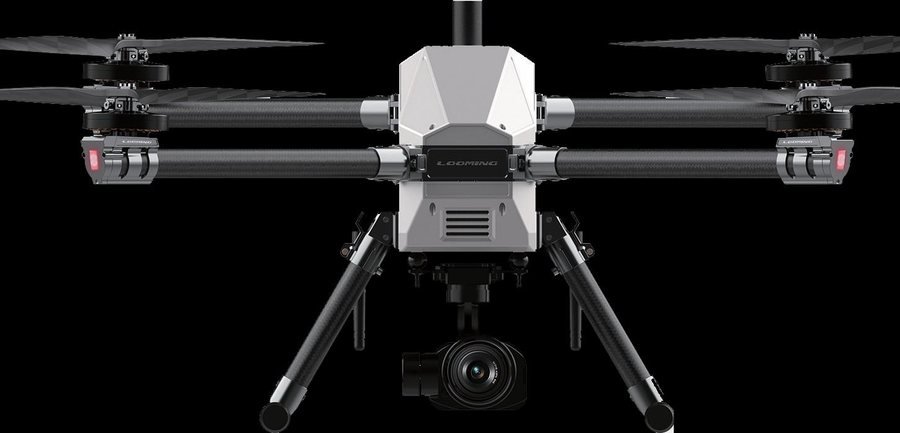

CS53

Long-endurance inspection quad with thermal camera

Endurance: 100–110 min
Payload: 3 kg
Range: 60 km
Max. take-off weight: 5.3 kg

Full specifications

Max. take-off weight	5.3 kg
Payload	3 kg
Diagonal wheelbase	810 mm
Max. speed	20 m/s
Endurance	100–110 min
Range	60 km
Service ceiling	6000 m
Wind resistance	12 m/s
Camera	Visible + 640×512 thermal

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

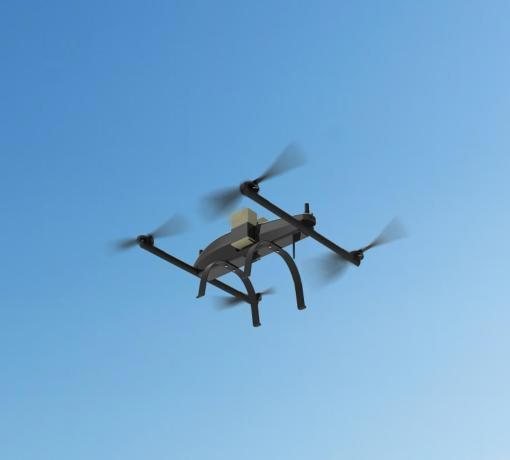

CS-20M

Quick-release multirotor for forest and mountain survey

Endurance: 2 h
Payload: 10 kg
Control range: 30 km
Max. take-off weight: 20 kg

Full specifications

Endurance	2 h
Dimensions	1057×500×1087 mm
Service ceiling	5500 m
Speed	54 km/h
Range	108 km
Wind resistance	12 m/s
Max. take-off weight	20 kg
Payload	10 kg
Take-off / landing	Vertical take-off and landing
Control range	30 km
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

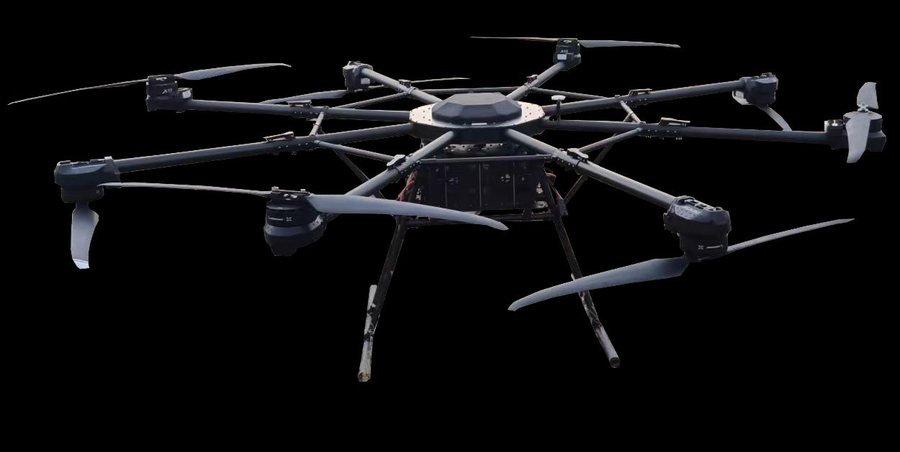

CSY100

100 kg heavy-lift octocopter for payload transport

Payload: 100 kg
Max. take-off weight: 240 kg
Endurance: 20–22 min
Diagonal wheelbase: 3230 mm

Full specifications

Diagonal wheelbase	3230 mm
Motors	8
Max. take-off weight	240 kg
Payload	100 kg
Empty weight	55 kg
Endurance	20–22 min
Wind resistance	12 m/s
Propellers	56-inch folding
Applications	Lifting, logistics, supply transport

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

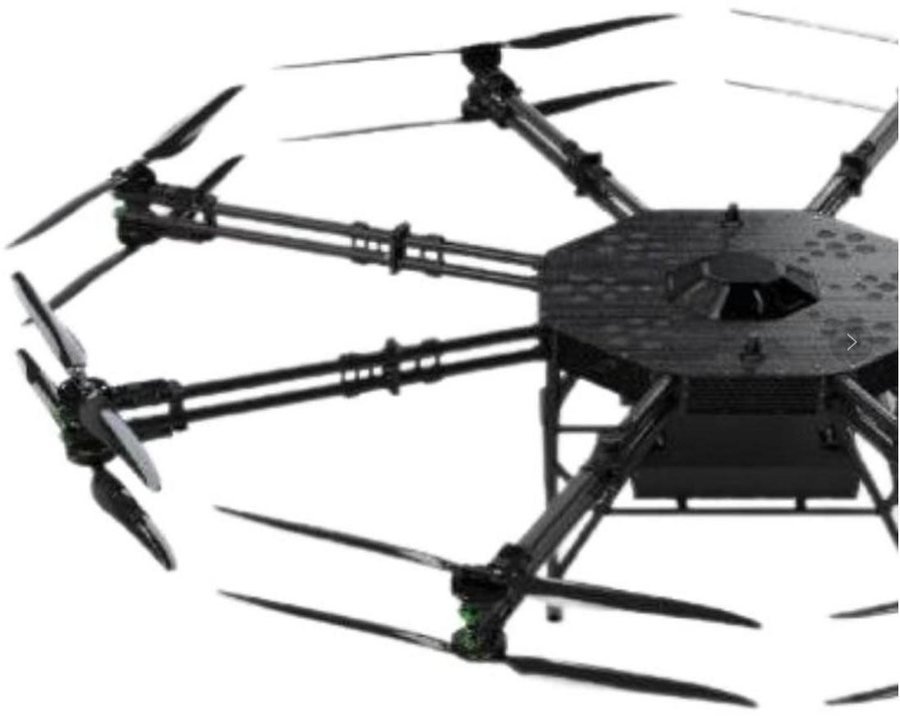

CSY200

200 kg heavy-lift platform with 12 rotors

Payload: 200 kg
Max. take-off weight: 398 kg
Endurance: 30 min
Max. speed: 25 m/s

Full specifications

Dimensions	3860×3860×1200 mm
Motors	12
Max. take-off weight	398 kg
Payload	200 kg
Endurance	30 min
Wind resistance	12 m/s
Propellers	56-inch folding
Climb / descent rate	8 m/s
Max. speed	25 m/s
Applications	Lifting, logistics, supply transport

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

Compare the series

Model	Payload	Endurance	Max. take-off weight	Empty weight	Diagonal wheelbase	Configuration
CSY4405	5 kg	70 min	–	6.5 kg	1050 mm	Quadcopter, 4 arms / 4 rotors
CSY4410	10 kg	50 min	–	12 kg	1300 mm	Quadcopter, 4 arms / 4 rotors
CSY4415	15 kg	70 min	–	14 kg	1400 mm	Quadcopter, 4 arms / 4 rotors
CSY6615	15 kg	30 min	–	13.8 kg	1650 mm	Hexacopter, 6 arms / 6 rotors
CSY4430	30 kg	50 min	–	22.5 kg	1800 mm	Quadcopter, 4 arms / 4 rotors
CSY6630	30 kg	22 min	–	22 kg	1850 mm	Hexacopter, 6 arms / 6 rotors
CS53	3 kg	100–110 min	5.3 kg	–	810 mm	–
CS-20M	10 kg	2 h	20 kg	–	–	–
CSY100	100 kg	20–22 min	240 kg	55 kg	3230 mm	–
CSY200	200 kg	30 min	398 kg	–	–	–

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

Need a configuration that is not listed?

Payloads, batteries, spare parts and ground stations can be quoted on request, subject to availability. Describe the job and we propose a setup.
