VTOL and fixed-wing drones for professional projects

Vertical take-off and landing removes the need for a runway or catapult. Fifteen airframes cover electric and fuel-powered versions from 10.5 to 175 kg take-off weight. According to the manufacturer, all support autonomous flight with return-to-home, tool-free assembly and a dual-sensor gimbal for daylight and thermal imaging.

Typical applications: VTOL fixed-wing drones for mapping and survey

Business customers only. For lawful civilian commercial and professional applications. All orders are subject to business verification, product eligibility and applicable approvals.

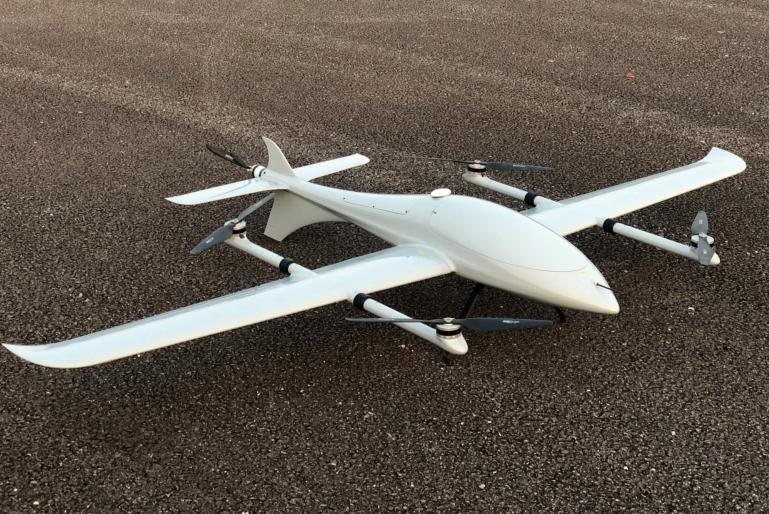

CS-10V

Lightest VTOL, tool-free quick assembly

Endurance: 3.5 h
Range: 235 km
Payload: 2.3 kg
Max. take-off weight: 10.5 kg

Full specifications

Endurance	3.5 h
Service ceiling	5000 m
Range	235 km
Max. take-off weight	10.5 kg
Payload	2.3 kg
Dimensions	1519×356×2398 mm
Speed	63–125 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

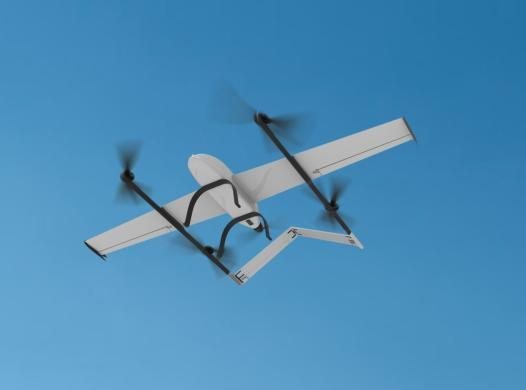

CS-20V

Forest, mountain and coastline survey

Endurance: 3 h
Range: 300 km
Payload: 4 kg
Max. take-off weight: 20 kg

Full specifications

Endurance	3 h
Service ceiling	6000 m
Range	300 km
Max. take-off weight	20 kg
Payload	4 kg
Dimensions	2160×760×3000 mm
Speed	60–105 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

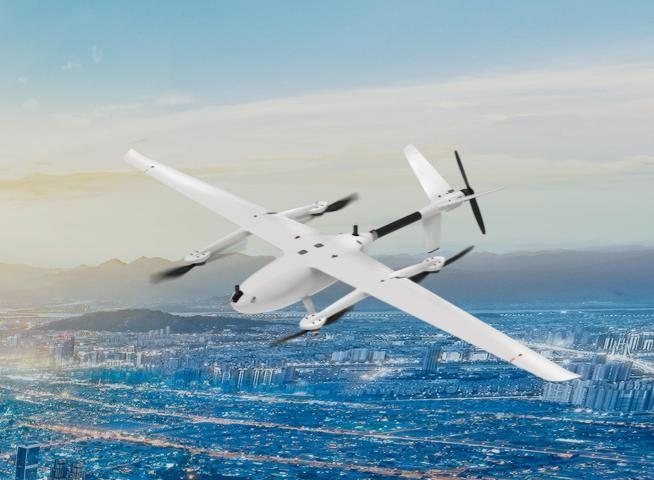

CS-24.5V Light

High-altitude variant with 6,000 m ceiling

Endurance: 2 h
Range: 140 km
Payload: 4 kg
Max. take-off weight: 24.5 kg

Full specifications

Endurance	2 h
Service ceiling	6000 m
Range	140 km
Max. take-off weight	24.5 kg
Payload	4 kg
Dimensions	2100×577×4000 mm
Speed	55–105 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

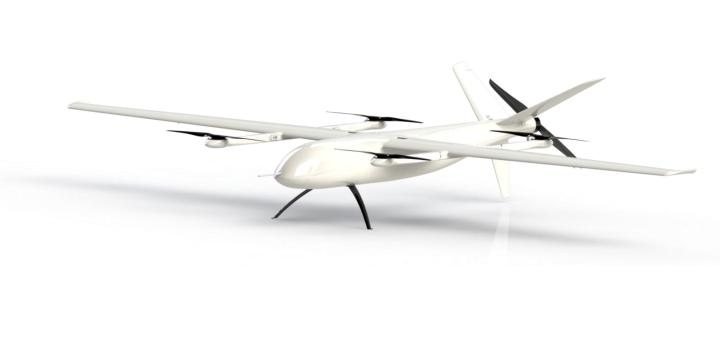

CS-25E

Electric VTOL for daily mapping missions

Endurance: > 3 h
Range: 240 km
Payload: 5 kg
Max. take-off weight: 28 kg

Full specifications

Endurance	> 3 h
Service ceiling	4000 m
Range	240 km
Max. take-off weight	28 kg
Payload	5 kg
Wingspan	3.7 m
Max. speed	120 km/h
Cruise speed	80 km/h
Wind resistance	13 m/s
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

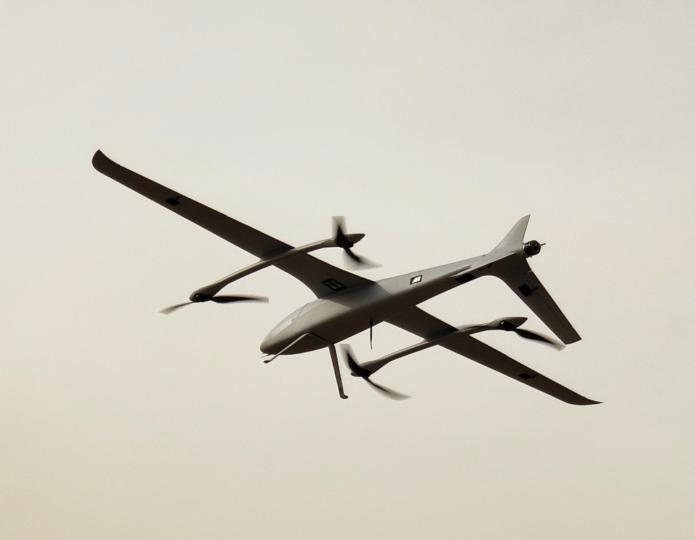

CS-30V

Mapping and corridor survey

Endurance: 4 h
Range: 345 km
Payload: 10 kg
Max. take-off weight: 30 kg

Full specifications

Endurance	4 h
Service ceiling	5000 m
Range	345 km
Max. take-off weight	30 kg
Payload	10 kg
Dimensions	2263×487×4000 mm
Speed	70–115 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

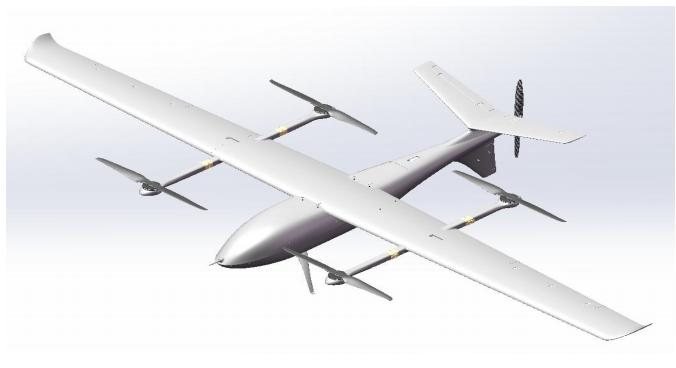

CS-35E

10 kg payload bay for LiDAR and multispectral

Endurance: > 4 h (5 kg)
Range: 320 km
Payload: 10 kg
Max. take-off weight: 35 kg

Full specifications

Endurance	> 4 h (5 kg)
Service ceiling	5000 m
Range	320 km
Max. take-off weight	35 kg
Payload	10 kg
Wingspan	4.4 m
Max. speed	> 140 km/h
Cruise speed	80 km/h
Wind resistance	13 m/s
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

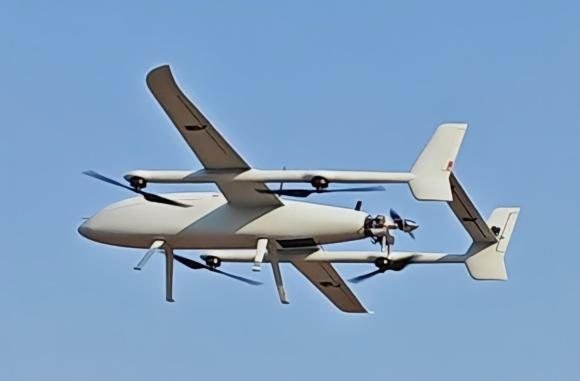

CS-35V

10-hour endurance for long corridors and large areas

Endurance: 10 h
Range: 930 km
Payload: 12 kg
Max. take-off weight: 35 kg

Full specifications

Endurance	10 h
Service ceiling	5000 m
Range	930 km
Max. take-off weight	35 kg
Payload	12 kg
Dimensions	2360×700×3920 mm
Speed	75–140 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

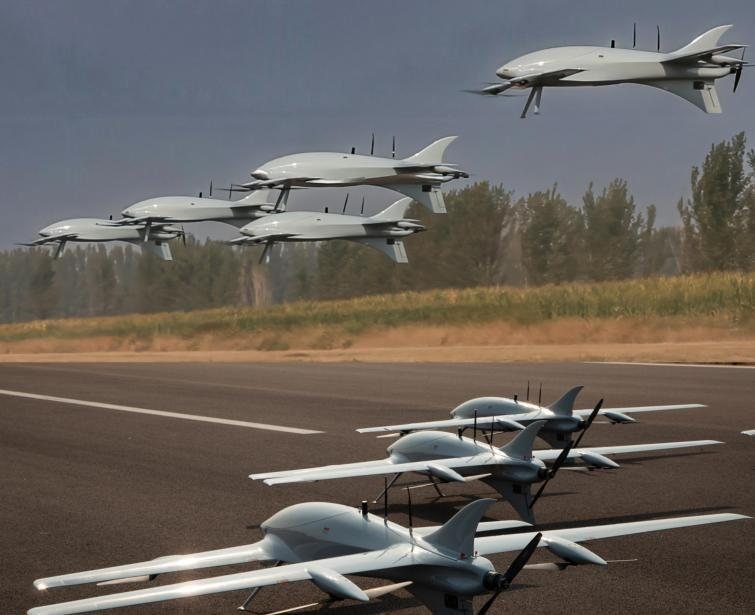

CS-40(TW)

Twin-boom, 12 hours, over 1,000 km range

Endurance: 12 h
Range: 1080 km
Payload: 18 kg incl. fuel
Max. take-off weight: 40 kg

Full specifications

Endurance	12 h
Service ceiling	5000 m
Range	1080 km
Max. take-off weight	40 kg
Payload	18 kg incl. fuel
Dimensions	2000×696×3744 mm
Speed	80–140 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

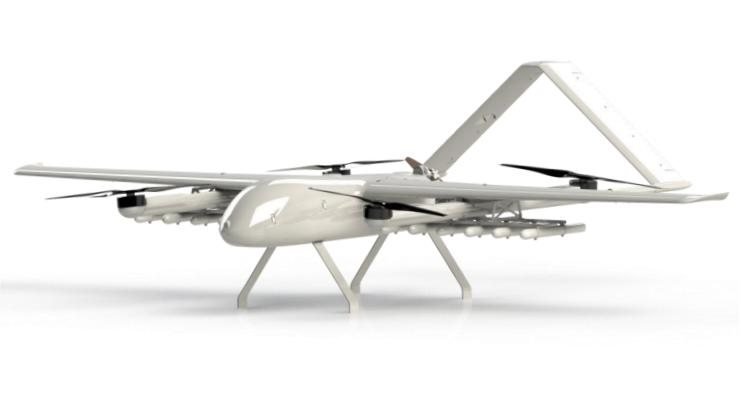

CS-80

Fuel-powered, 20 kg payload

Endurance: 6 h
Range: 660 km
Payload: 20 kg
Max. take-off weight: 80 kg

Full specifications

Endurance	6 h
Service ceiling	4000 m
Range	660 km
Max. take-off weight	80 kg
Payload	20 kg
Wingspan	4.8 m
Max. speed	> 150 km/h
Cruise speed	110 km/h
Fuel tank	20 L
Wind resistance	13 m/s
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

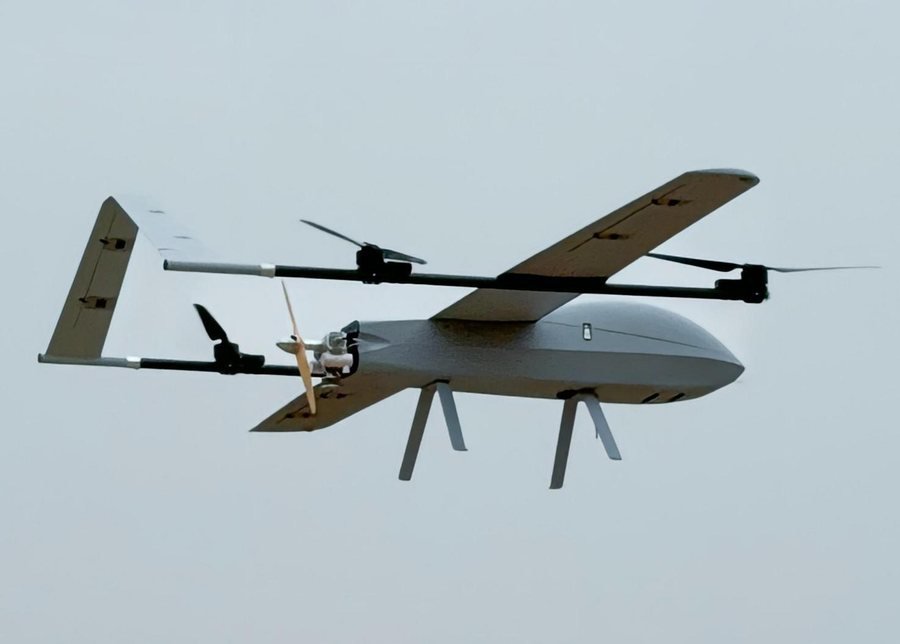

CS-100V

100 kg class for heavy sensor packages

Endurance: 12 h
Range: 300 km
Payload: 45 kg incl. fuel
Max. take-off weight: 100 kg

Full specifications

Endurance	12 h
Service ceiling	5000 m
Range	300 km
Max. take-off weight	100 kg
Payload	45 kg incl. fuel
Dimensions	3000×1135×5470 mm
Speed	70–110 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

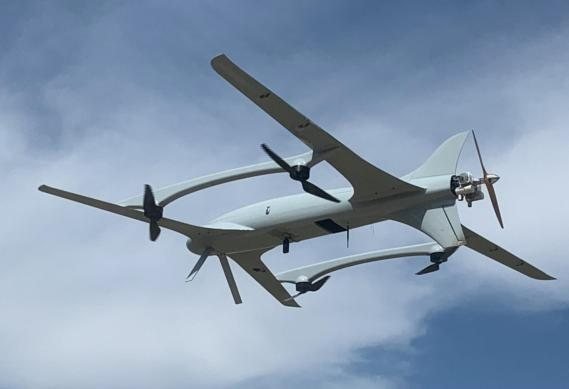

CS-100V(TW)

Twin-boom, faster cruise at 100–140 km/h

Endurance: 4.4 h
Range: 470 km
Payload: 45 kg incl. fuel
Max. take-off weight: 100 kg

Full specifications

Endurance	4.4 h
Service ceiling	5000 m
Range	470 km
Max. take-off weight	100 kg
Payload	45 kg incl. fuel
Dimensions	2905×930×5100 mm
Speed	100–140 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

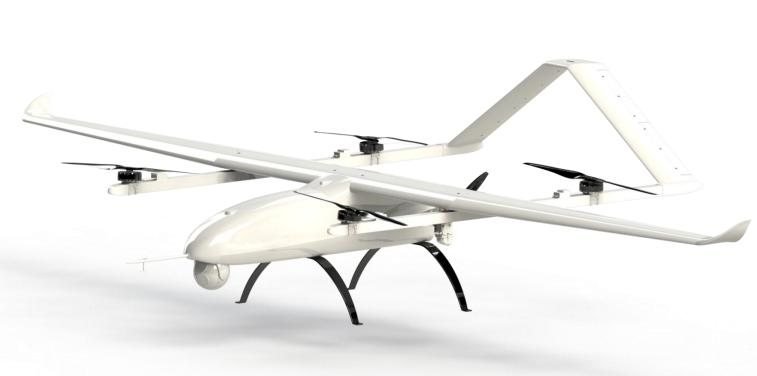

CS-130

8 hours with 30 kg, rated for 17 m/s wind

Endurance: 8 h
Range: 880 km
Payload: 30 kg
Max. take-off weight: 130 kg

Full specifications

Endurance	8 h
Service ceiling	4000 m
Range	880 km
Max. take-off weight	130 kg
Payload	30 kg
Wingspan	6 m
Max. speed	140 km/h
Cruise speed	110 km/h
Fuel tank	25 L
Wind resistance	17 m/s
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

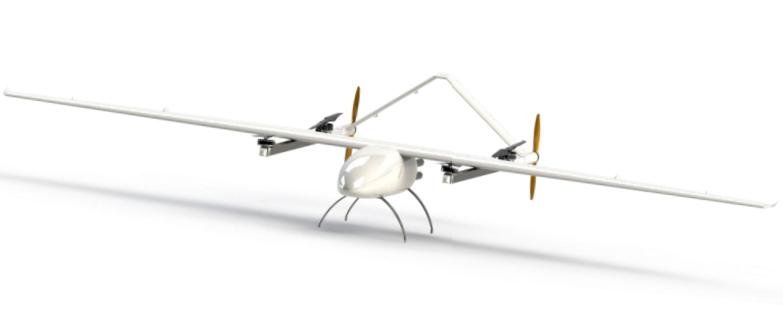

CS-130E

Electric 130 kg class

Endurance: 3 h
Range: 330 km
Payload: 30 kg
Max. take-off weight: 130 kg

Full specifications

Endurance	3 h
Service ceiling	5500 m
Range	330 km
Max. take-off weight	130 kg
Payload	30 kg
Wingspan	6.8 m
Max. speed	> 140 km/h
Cruise speed	110 km/h
Wind resistance	13 m/s
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

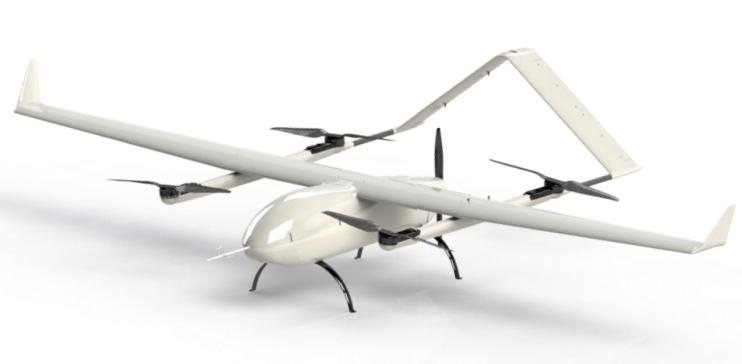

CS-160

40 kg payload for multi-sensor survey

Endurance: > 8 h
Range: 880 km
Payload: 40 kg
Max. take-off weight: 160 kg

Full specifications

Endurance	> 8 h
Service ceiling	5000 m
Range	880 km
Max. take-off weight	160 kg
Payload	40 kg
Wingspan	6.58 m
Max. speed	140 km/h
Cruise speed	110 km/h
Fuel tank	30 L
Wind resistance	17 m/s
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

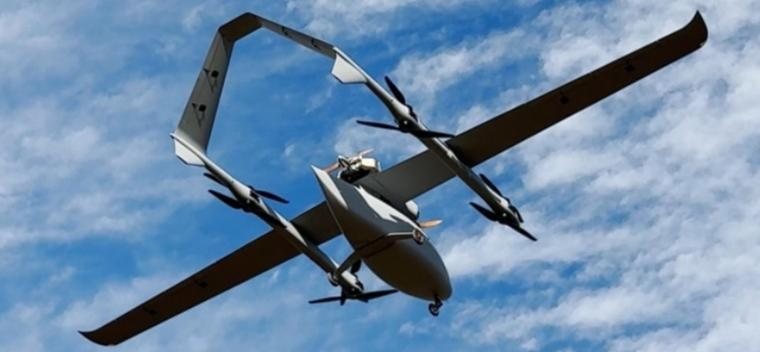

CS-175V

Largest VTOL in the range, 8 m wingspan

Endurance: 4 h
Range: 400 km
Payload: 65 kg incl. fuel
Max. take-off weight: 175 kg

Full specifications

Endurance	4 h
Service ceiling	5000 m
Range	400 km
Max. take-off weight	175 kg
Payload	65 kg incl. fuel
Dimensions	3749×1764×8000 mm
Speed	90–160 km/h
Wind resistance	13 m/s
Control range	30 km
Take-off / landing	Vertical take-off and landing
Sensor payload	Dual-sensor gimbal: 1080p zoom + 640 thermal
Features	Autonomous flight, return-to-home on link loss
Operating temperature	−20 … 55 °C

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

Compare the series

Model	Endurance	Range	Payload	Max. take-off weight	Service ceiling
CS-10V	3.5 h	235 km	2.3 kg	10.5 kg	5000 m
CS-20V	3 h	300 km	4 kg	20 kg	6000 m
CS-24.5V Light	2 h	140 km	4 kg	24.5 kg	6000 m
CS-25E	> 3 h	240 km	5 kg	28 kg	4000 m
CS-30V	4 h	345 km	10 kg	30 kg	5000 m
CS-35E	> 4 h (5 kg)	320 km	10 kg	35 kg	5000 m
CS-35V	10 h	930 km	12 kg	35 kg	5000 m
CS-40(TW)	12 h	1080 km	18 kg incl. fuel	40 kg	5000 m
CS-80	6 h	660 km	20 kg	80 kg	4000 m
CS-100V	12 h	300 km	45 kg incl. fuel	100 kg	5000 m
CS-100V(TW)	4.4 h	470 km	45 kg incl. fuel	100 kg	5000 m
CS-130	8 h	880 km	30 kg	130 kg	4000 m
CS-130E	3 h	330 km	30 kg	130 kg	5500 m
CS-160	> 8 h	880 km	40 kg	160 kg	5000 m
CS-175V	4 h	400 km	65 kg incl. fuel	175 kg	5000 m

Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.

Need a configuration that is not listed?

Payloads, batteries, spare parts and ground stations can be quoted on request, subject to availability. Describe the job and we propose a setup.
