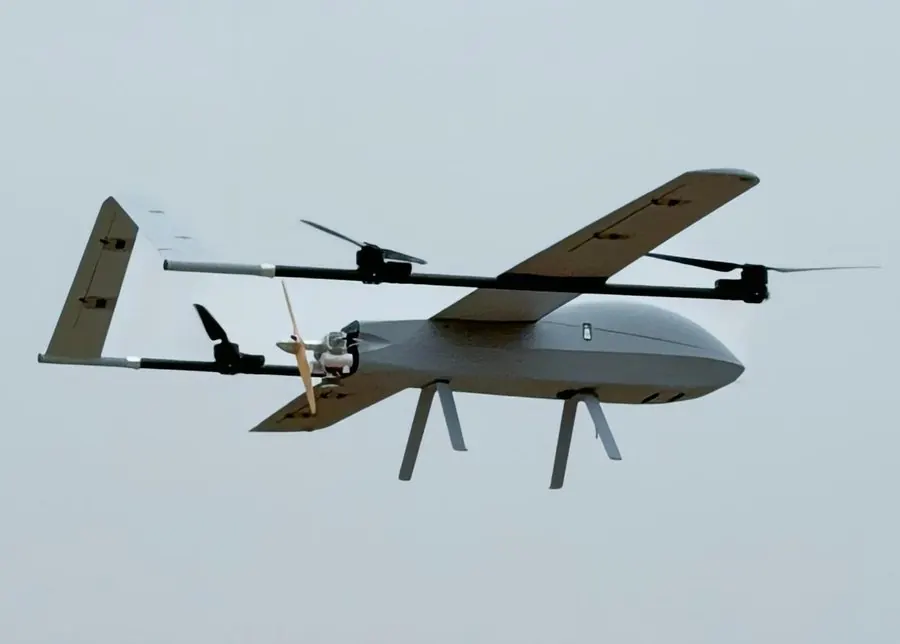

CS-100V(TW)
Twin-boom, faster cruise at 100–140 km/h
- Endurance
- 4.4 h
- Range
- 470 km
- Payload
- 45 kg incl. fuel
- Max. take-off weight
- 100 kg
CS-130 VTOL fixed-wing drone
8 hours with 30 kg, rated for 17 m/s wind
Business customers only. For lawful civilian commercial and professional applications. All orders are subject to business verification, product eligibility and applicable approvals.
Key data
- Endurance
- 8 h
- Range
- 880 km
- Payload
- 30 kg
- Max. take-off weight
- 130 kg
Before you order Approvals, export control and safe operation
Long-endurance aircraft and thermal payloads are reviewed for export control before an order is accepted; an end-user statement and a government permit may be required. Long-range flights need specific operating approvals. Docking stations are available on request under the same conditions. Export and end-use policy · Buyer's guide
Technical data
| Endurance | 8 h |
|---|---|
| Service ceiling | 4000 m |
| Range | 880 km |
| Max. take-off weight | 130 kg |
| Payload | 30 kg |
| Wingspan | 6 m |
| Max. speed | 140 km/h |
| Cruise speed | 110 km/h |
| Fuel tank | 25 L |
| Wind resistance | 17 m/s |
| Take-off / landing | Vertical take-off and landing |
| Sensor payload | Dual-sensor gimbal: 1080p zoom + 640 thermal |
| Features | Autonomous flight, return-to-home on link loss |
| Operating temperature | −20 … 55 °C |
Manufacturer data, measured under the manufacturer's test conditions. They do not confer any approval or operating right. The binding specification is confirmed in the order confirmation.
Compared with similar models
| Model | Endurance | Range | Payload | Max. take-off weight | Service ceiling |
|---|---|---|---|---|---|
| CS-130 | 8 h | 880 km | 30 kg | 130 kg | 4000 m |
| CS-100V(TW) | 4.4 h | 470 km | 45 kg incl. fuel | 100 kg | 5000 m |
| CS-130E | 3 h | 330 km | 30 kg | 130 kg | 5500 m |
About this product line
Vertical take-off and landing removes the need for a runway or catapult. Fifteen airframes cover electric and fuel-powered versions from 10.5 to 175 kg take-off weight. According to the manufacturer, all support autonomous flight with return-to-home, tool-free assembly and a dual-sensor gimbal for daylight and thermal imaging.
Typical applications: VTOL fixed-wing drones for mapping and survey
Related models
Need a configuration that is not listed?
Payloads, batteries, spare parts and ground stations can be quoted on request, subject to availability. Describe the job and we propose a setup.
